DL601F explosion-proof lighting fixture,outdoor floodlight, area light

  • DL601F explosion-proof lighting fixture,outdoor floodlight, area light
  • DL601F explosion-proof lighting fixture,outdoor floodlight, area light
  • DL601F explosion-proof lighting fixture,outdoor floodlight, area light
Model No.︰DL601F
Brand Name︰GOLDENFUTURE
Country of Origin︰China
Unit Price︰-
Minimum Order︰200 pc
Share on:

 Total 16 Related Items
Prev89101112Next

Product Description

 Descrition:

Die cast aluminum housing with super corrusion-proof Polyester coated; toughened glass lens with silicon rubber gasket ring for waterproof.

5pcs 5 watt super bright CREE LED to get more than 3400 lumens output, lifetime is more than 50,000 hours


High-purity aluminum vacuum plating reflector helps providing high reflectivity and excellent light efficiency;
No UV or IR for the LED light, no heat and no harmful radiation
heat-resistance, shock-resistance,  waterproof, explosion-proof;

Applications:

 Flammable and explosive Zone II;

Restricted district and heavy industry machining equipment district;

Drilling rig area and other dangerous seacoast and offing area;

Refinery, chemical plant , pharmacy plant, oil store and gas factory


Specifications:

Items

Unit

Value

Luminary

LED Power

W

25

Luminous Flux

lumens

3400

Lifespan

H

100,000

Rated Voltage

V

AC 110~240

DC 36

DC 24

Dimension

mm

Ф160×85

Weight

g

660

Connecting wire

mm

Ф6~8

Inlet’s thread

G3/4

Corrosion protection Classification

WF2

Insulation Classification

I

IP Classification

Ip67

EX Mark

ExdⅡCT6

Certificate of Conformity Serial No.

CNEx07.1999

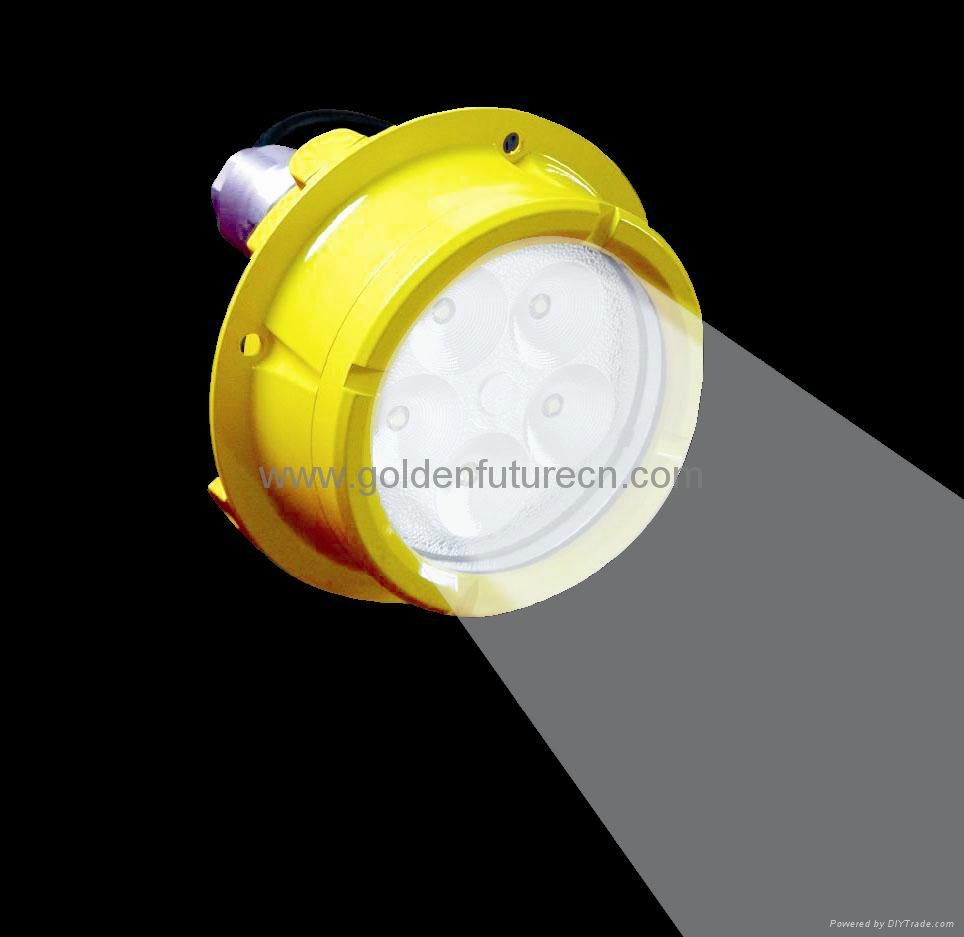

Product Image
